Flite

High density seating
Incorporating all of OMK’s experience in public seating, Flite has a compact footprint to maximise seating capacity. A single bracket supports identical seat and back panels to create a low cost, high performance seat.

  • +10% SEATING DENSITY
  • RAPID ASSEMBLY
  • 3 FINISH TYPES
  • 25 YEAR WARRANTY
  • PRM OPTIONS
  • POWER INTEGRATION

Features

The seat and back sub assembly attaches to an extruded aluminium beam with only two fixings making it possible for Flite to be assembled in minutes by a single operator. Integrated features such as the power arm can be combined with a range of finishes to configure Flite to suit all specifications.

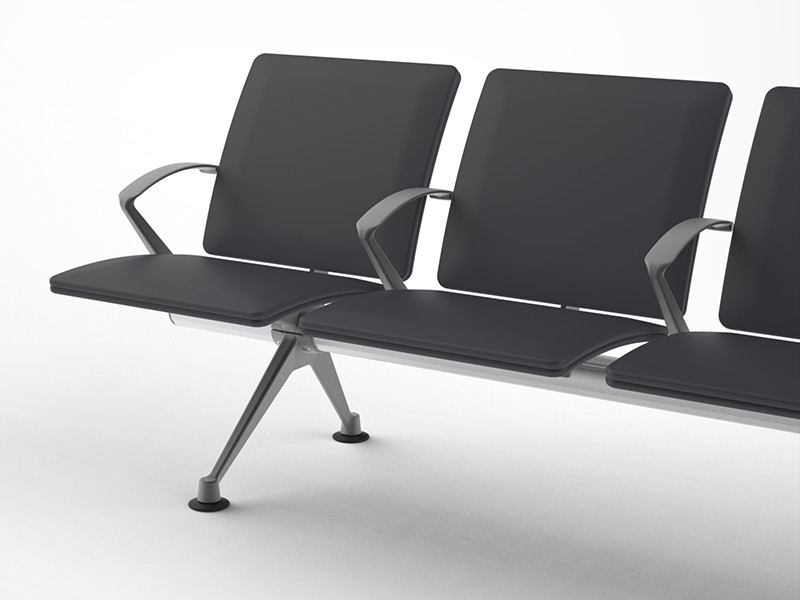

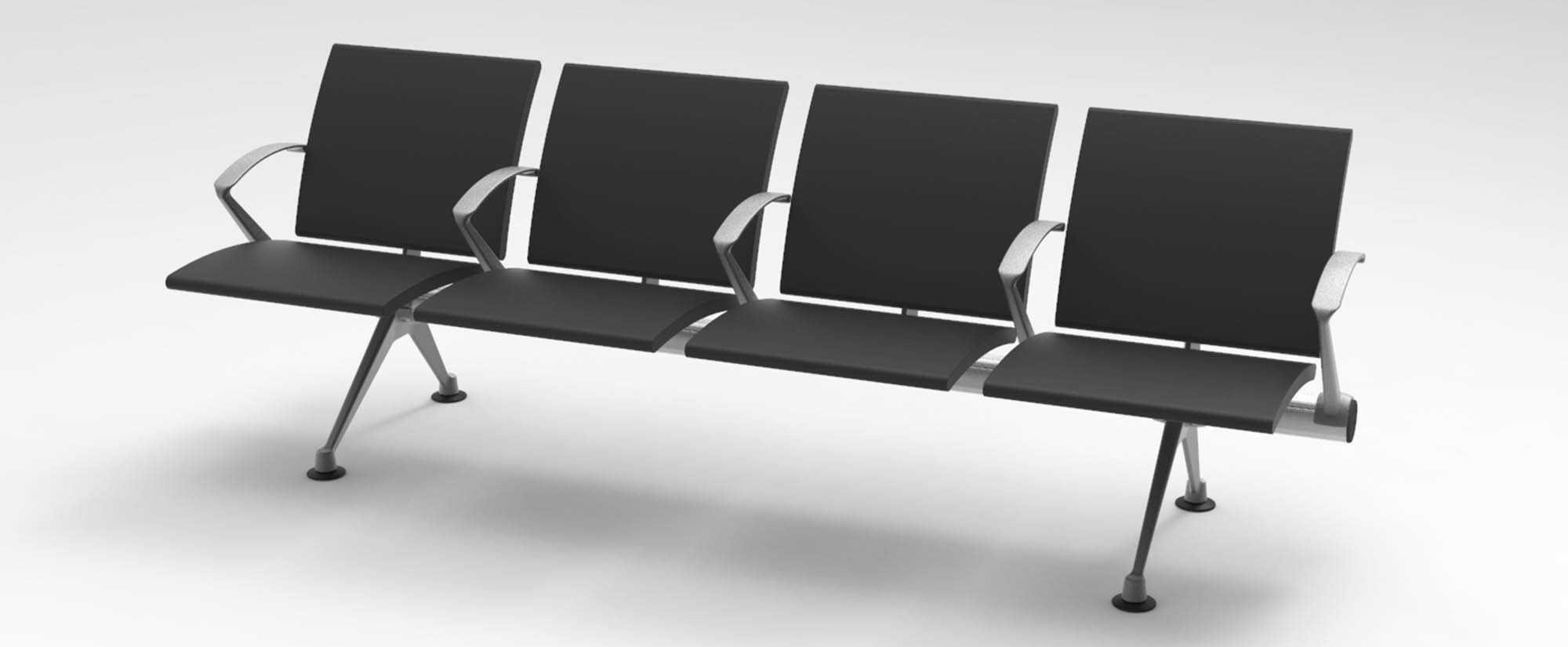

Low Back

Available in moulded polyurethane, coach hide leather and soft upholstery.
Seat and back panels are identical minimising spare parts and allowing panels to be swapped to extend time in service.

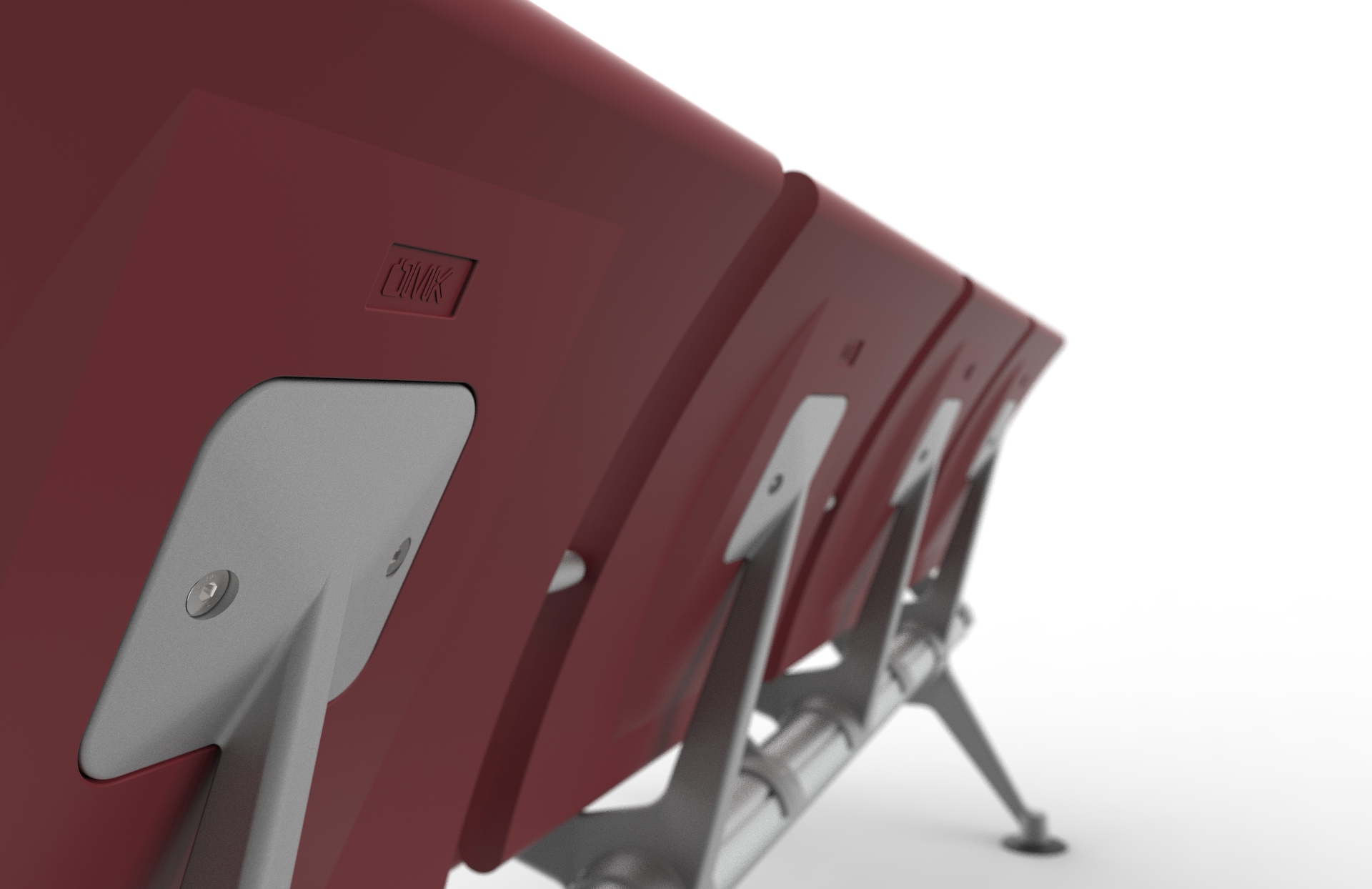

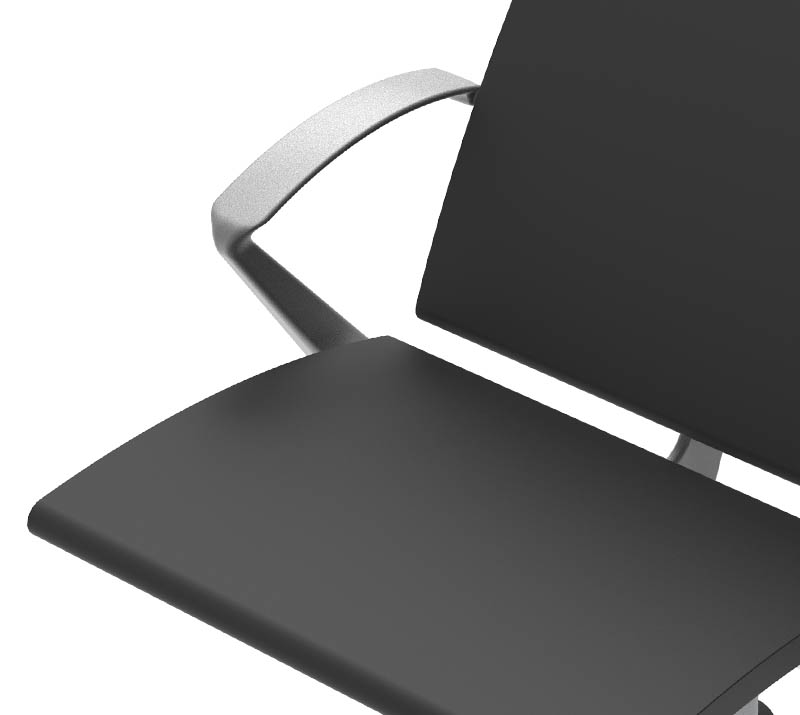

Moulded Polyurethane

Comfortable and durable, self-healing polyurethane is available in any RAL colour. Suitable for interior or exterior use.

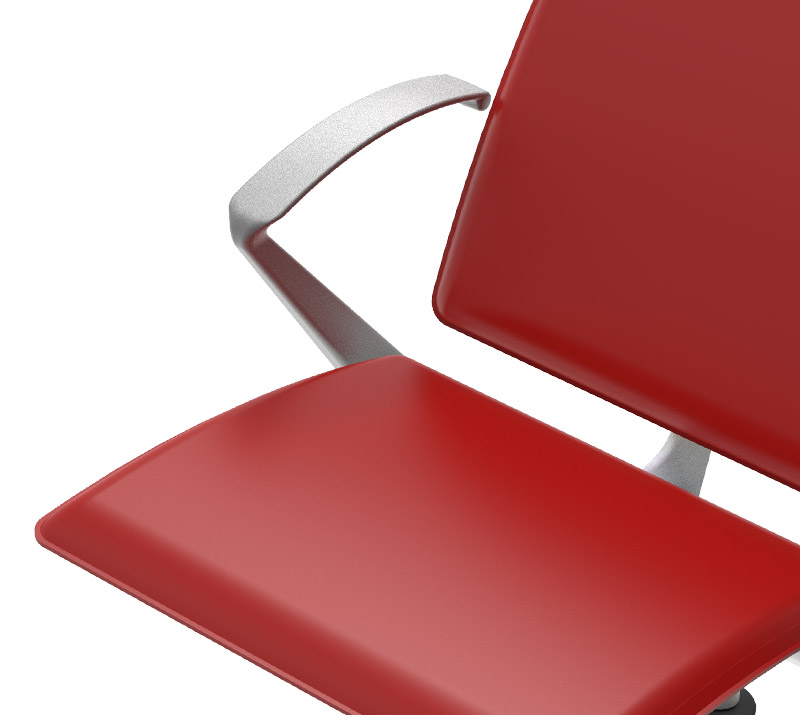

Saddle-Stitched Coach Hide

Hand stitched in Italy, coach hide leather is a luxurious and highly durable finish providing a practical specification for prestigious projects.

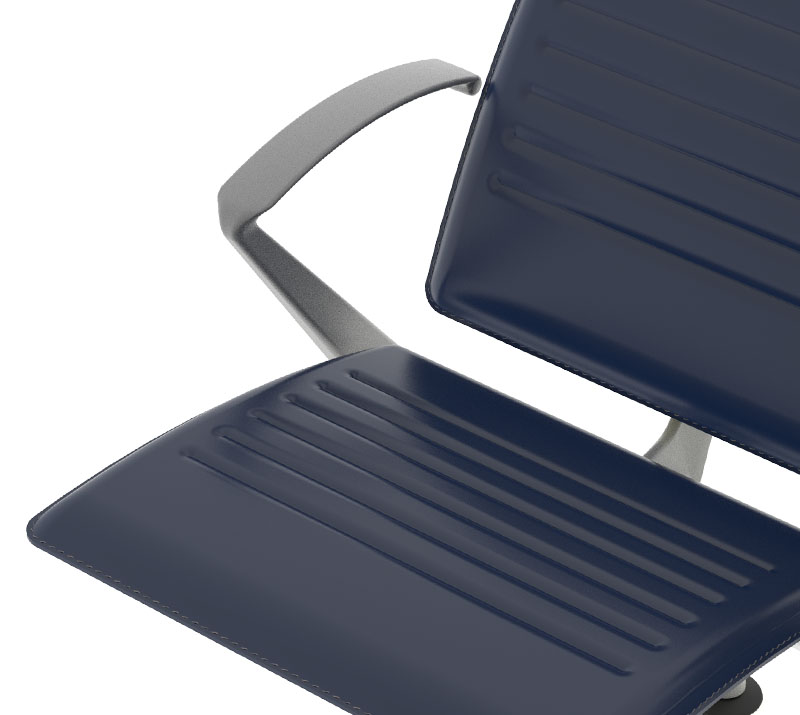

Saddle-Stitched Coach Hide – Ribbed

The addition of stitched ribs adds visual impact and can be selected from a wide range of complimentary or contrasting colours.

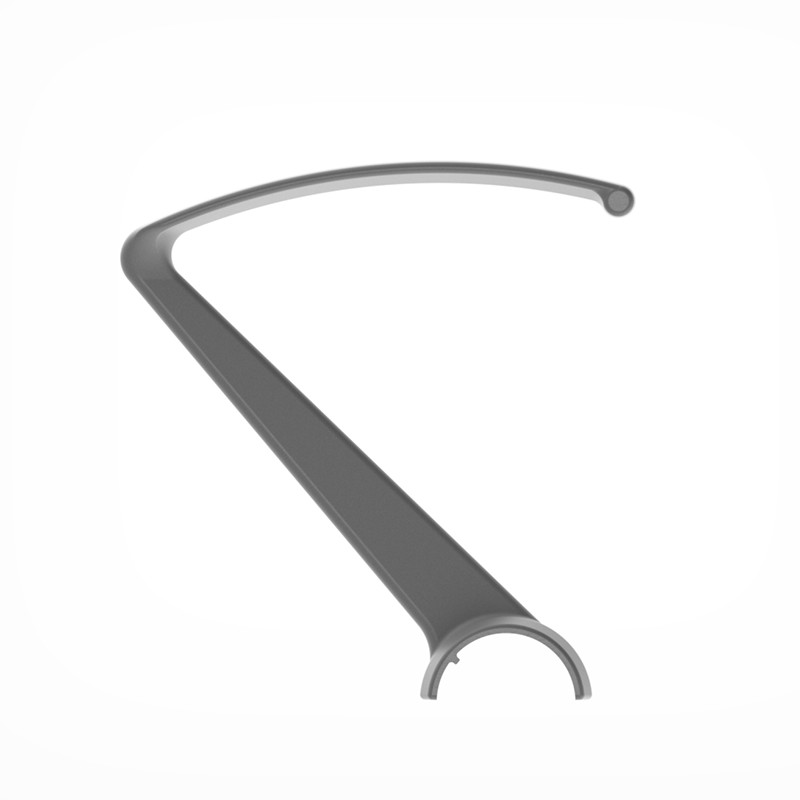

flite arm rest with powder coated finish

Cast Aluminium Arm – Powder Coated

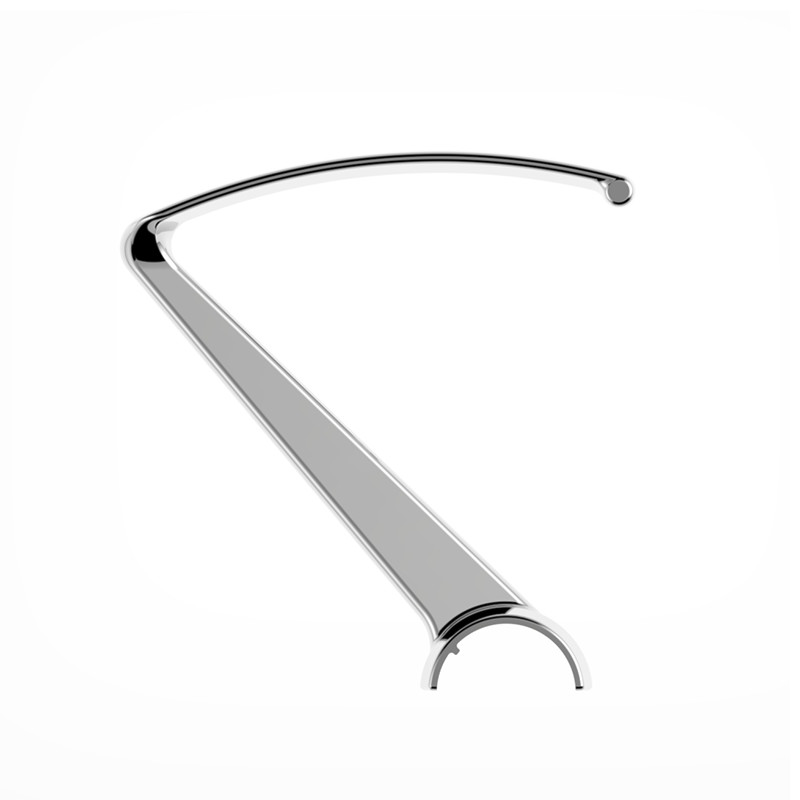

flite arm rest with polished chrome finish

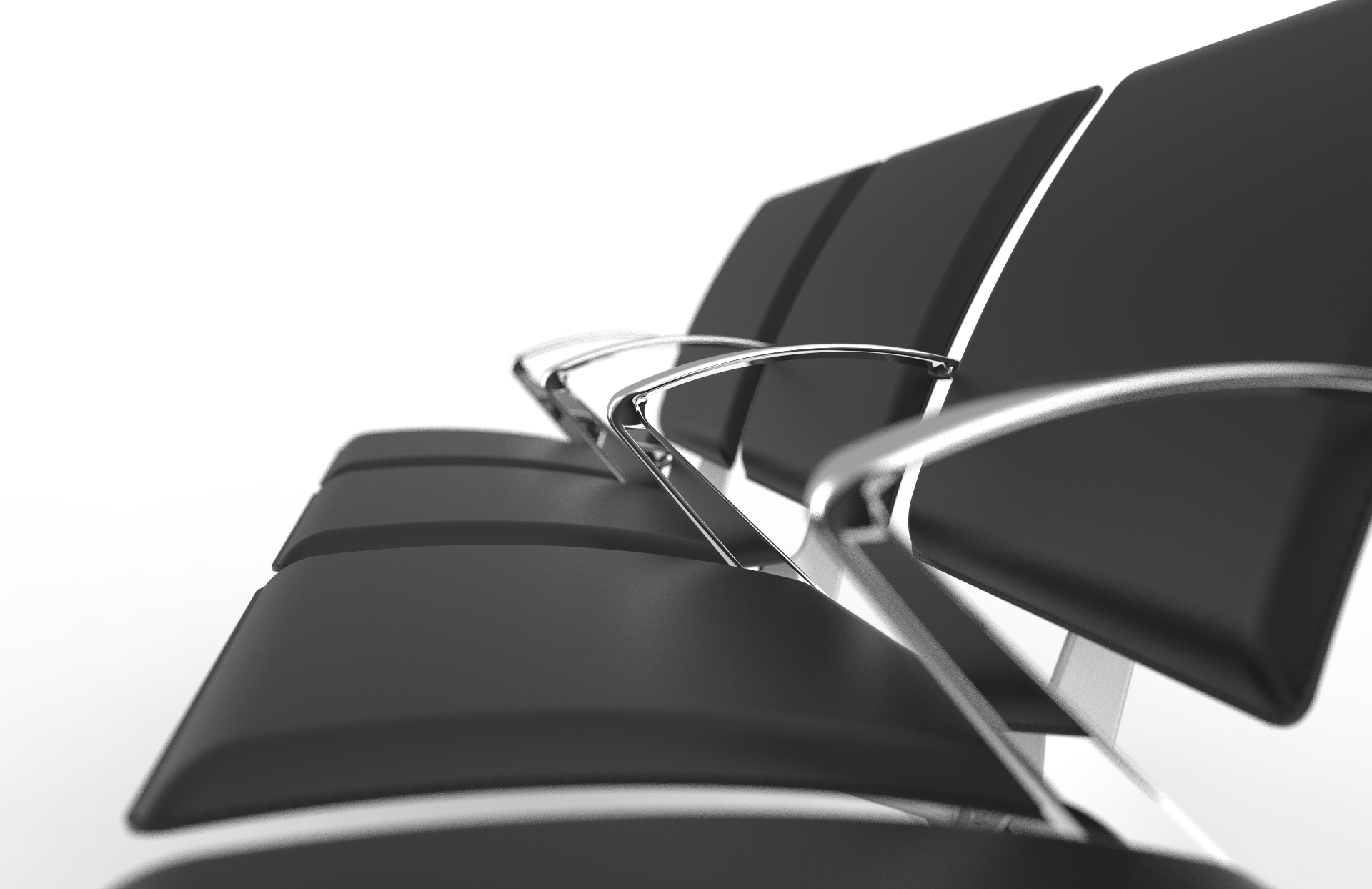

Cast Aluminium Arm – Polished

half rectangle table

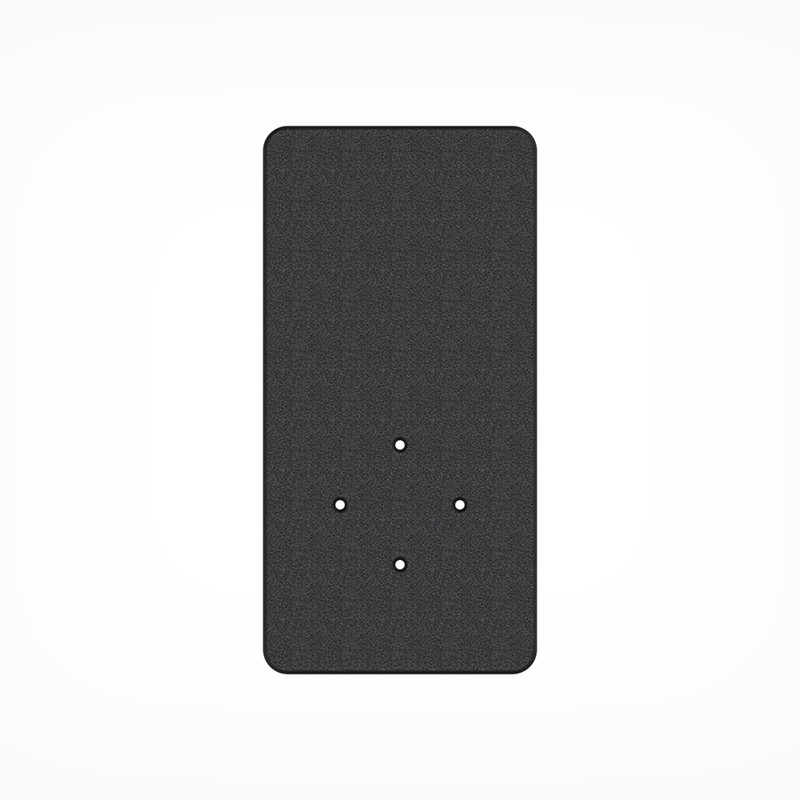

Reversible Table

PRM OPTIONS

Flite has a wide range of PRM options available at order or to retro-fit. Universally recognized symbols are moulded into the polyurethane panels to ensure longevity. Individual seats can be raised and longer padded armrests provide added support.

Moulded PRM Logo

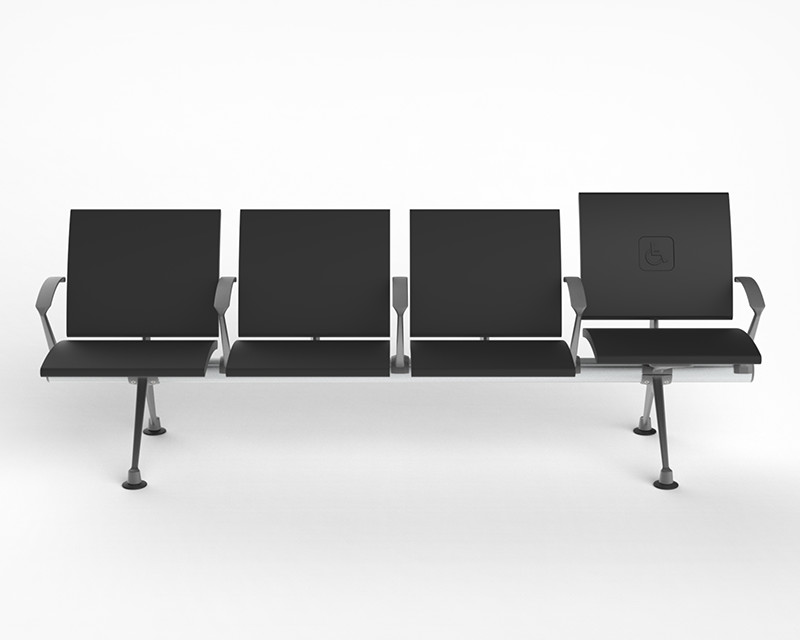

Low Back with PRM Logo & Raised Seat

POWER OPTIONS

OMK power units feature two regional power sockets and two intelligent fast charge USB ports to power the latest generation of mobile technology.

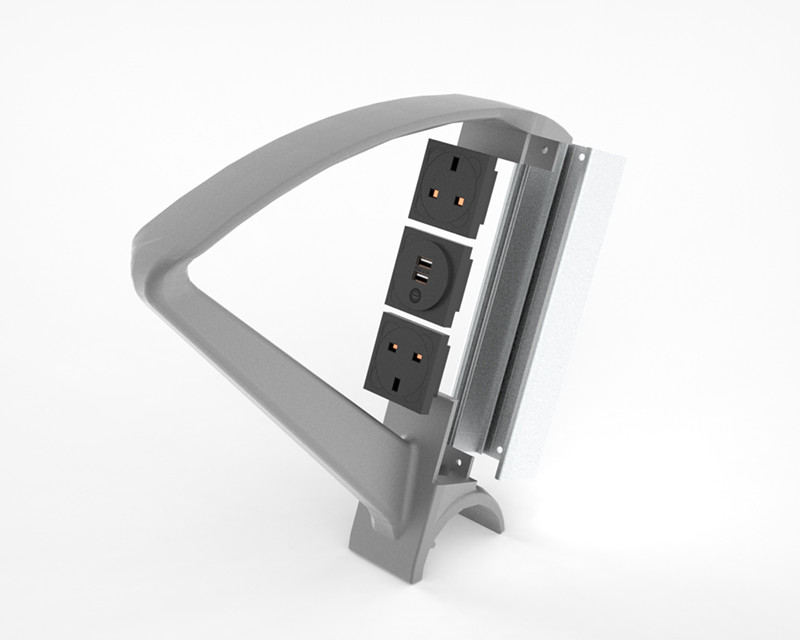

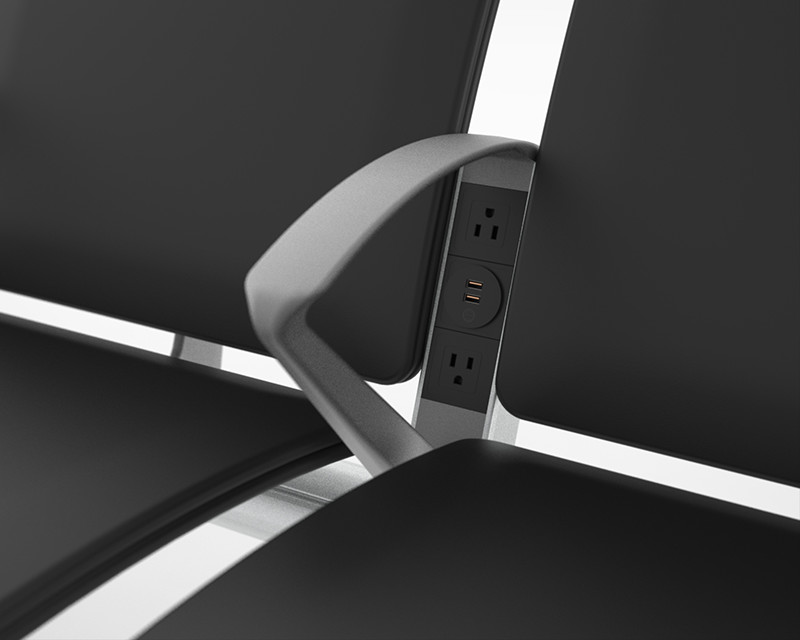

Power Arm

The integrated power arm can be placed at any position along the beam replacing a regular arm rest. Includes 2 power sockets, available in any international standard, and two fast charge USB sockets.

Removable modules are mounted inside a custom extruded aluminium housing, making it easy to upgrade to the latest technology or replace in event of damage.

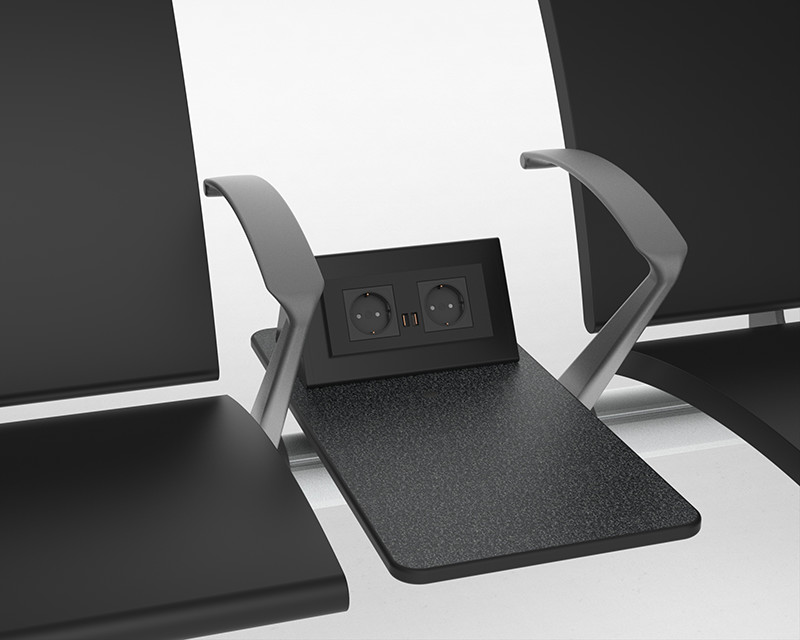

On Table Power

A standalone power unit is mounted on top of the table, cabling passes through the table and into the beam. Available on both full and half tables.

Seats can be positioned along the beam as a continuous bench of any length, with or without intermediary arms. Optional tables can be positioned on the end of the beam or in between individual seats.

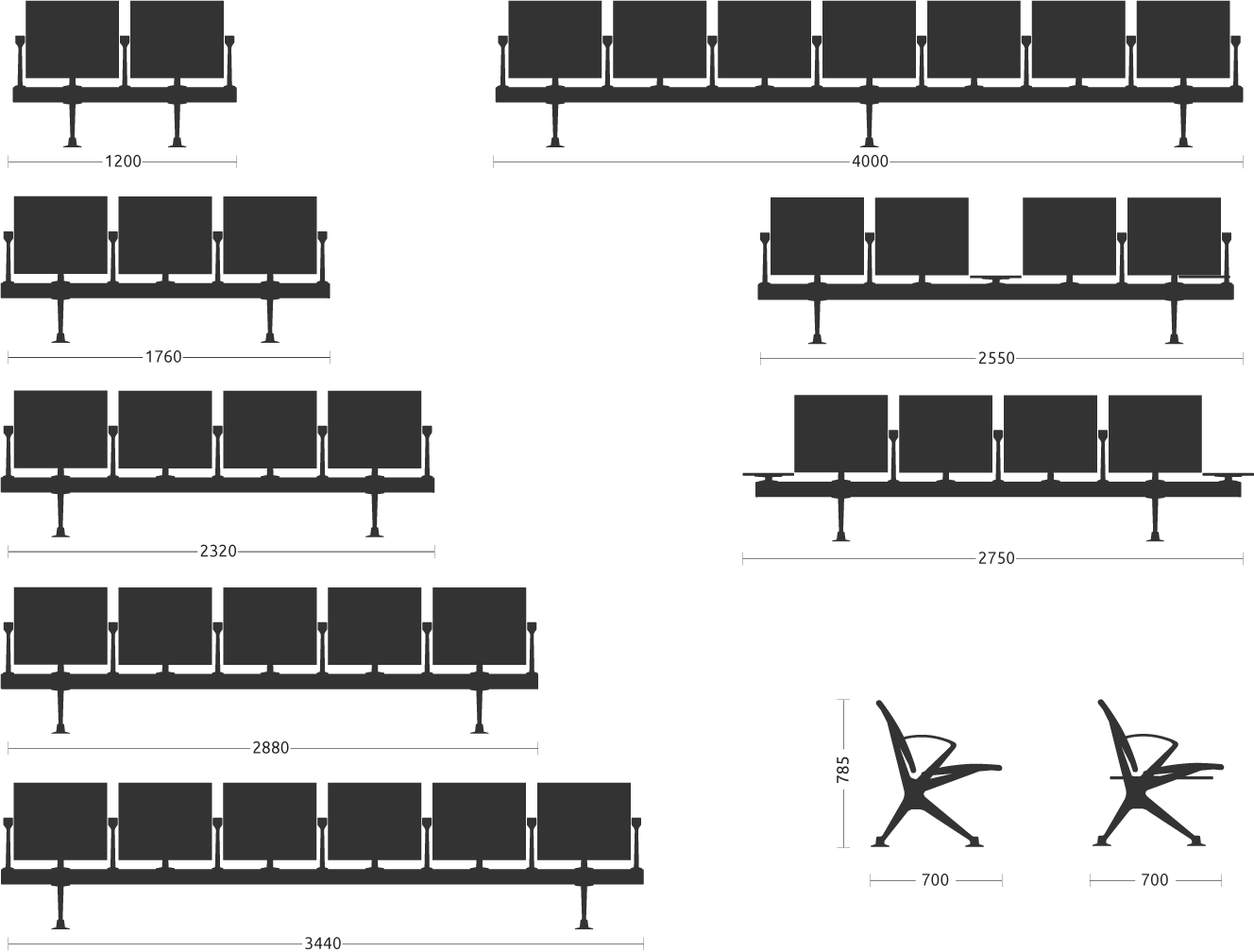

flite dimensions measurements

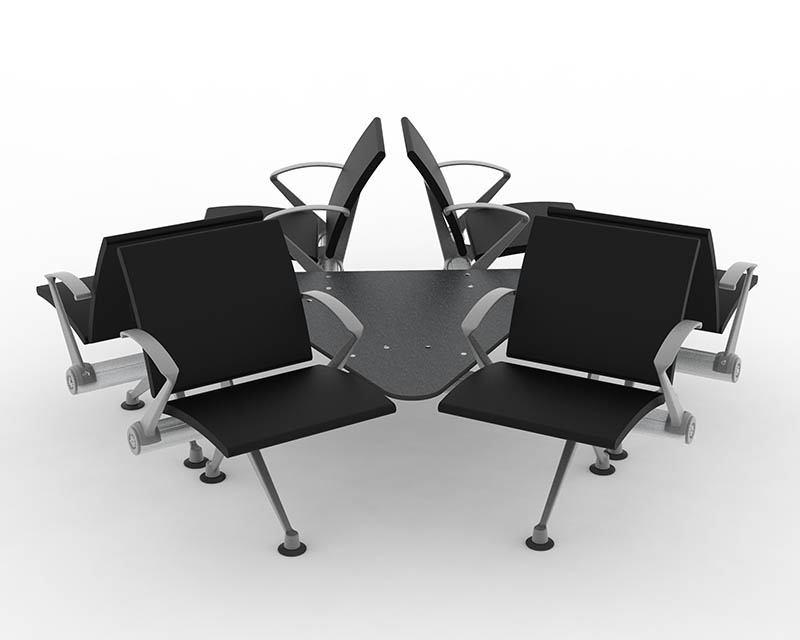

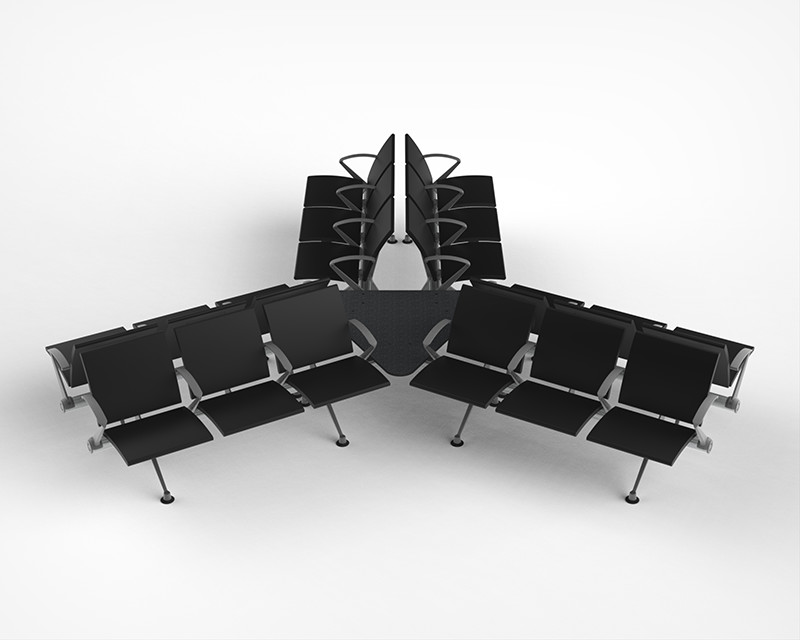

Flite Hub

As an alternative to traditional linear arrangements Hubs create dynamic layouts, providing a 360 degree view of the environment and creating social spaces for groups. Hubs can be used individually or linked to form an articulated seating unit.

Configurator

Create your ideal Flite system by selecting your chassis, finish, and accessory options. Colour palettes for all finishes are available on request. Please see the Trax and Seville pages for other configurators, and contact us if you need assistance, or have a special request.

Chassis none ...
Finishes none ...
Arms none ...
Arms none ...
Arms none ...
Arm finish none ...
Arm finish none ...
Arm finish none ...
Arm finish none ...
Arm finish none ...
Arm finish none ...
Total:

Technical Specifications

By using cutting edge materials and manufacturing techniques all of our products carry a 25 year warranty and are independently tested to withstand this use.

  • Guaranteed against structural failure for a minimum of 25 years.
  • Has been independently tested by FIRA to withstand 25 years of heavy contract use in accordance with BS EN 15373.
  • Metal components are finished for interior and exterior use and are UV stable.

All seating products and tables supplied by OMK have been tested to and exceed the fire-rating requirements set out by British Standard BS5852 crib source 0, 1 and 5 and are approved for use in public waiting areas.

  • All components can be coloured to any RAL colour.
  • Flite incorporates 30 years of experience in the public seating sector, designed to maximise space the small footprint offers 10% more seating over other systems.
  • A minimalist structure utilises a single bracket supporting 2 independent identical seat and back panels allowing either to be easily replaced in situ in the event of damage without the necessity to replace or repair the whole seat.
  • A gap between the seat and back eliminates dirt accumulation and allows any spilt liquids to drain immediately.
  • Seat and back panels are identical minimising the number of components and making it easy to stock spare parts.
  • Rounded edges eliminate the problems of accidental impact injuries.
  • All panels are interchangeable allowing in-house maintenance staff to easily change the specification should future passenger profiles change.
  • Armrests may be added or subtracted as they are not integral to the seat and the fixings remain common on all beam configurations.
  • Injection moulded polyurethane panels are formed around an integral steel sheet and self- coloured throughout.
  • Tables are double sided allowing them to be reversed in the event of surface damage and incorporate through fixings to facilitate this.
  • Components can be removed, added and transferred making the units easily reconfigurable.

Flite utilises a circular extruded aluminium supporting beam.

  • Extruded aluminium with an anodised finish.
  • High strength aluminium alloy, UNE-L2630 alloy 6063.
  • Anodised film applied 25 microns thick.
  • Breaking strength of 20kg/mm.
  • Bending strength of 175N/mm.
  • Tensile strength of 300N/mm.
  • Density of 2.7g/cm.
  • Injection moulded polypropylene end caps.

Seat and back panels are available in the following finishes:

Moulded Polyurethane
  • Self-skinned moulded polyurethane panels with a fabricated steel core.
  • Fabricated from 3mm steel sheet and tube.
  • Integral polyurethane.
  • Pressure injected around steel frames.
  • Incorporates threaded inserts to enable fixing.
  • Available in any RAL colour, Dyed throughout.
  • Flame retardant to BS 5852: 1990 (source 0, 1 and 5) and BS 476 part 7 class 1.
  • Suitable for interior and exterior use.
Upholstery Options
  • Plywood and foam core available in a range of cover options.
  • Rear face upholstered to match the finish of the front face.
  • Free from welts, creases, stretch lines and wrinkles.
  • Pile and pattern consistent.
  • Constructed from 10.5mm rotary cut steamed birch veneer.
  • Water resistant glue finished in 4 coats of AC lacquer.
  • CMHR 50, minimum thickness 25mm.
  • Suitable for heavy contract use.
  • Does not deform, wrinkle or form puddles with frequent use.
  • Does not contain isocyanate or blowing agent.
  • CFC and halogen free.
  • Density 60kg.m≤.
  • Tensile strength 90kPa.
  • Fatigue class: V (as tested to BS:3379).
  • Flame retardant to BS 5852: 1990 (sect 5: sources 0, 1 and 5).
  • All covers used have fine wear-proof and scratch-proof performances.
  • DIN 53326 (UV stability under heavy contract use).
  • Flame retardant to BS 5852: 1990 (sect 5: sources 0, 1 and 5).
  • 100,000 + rubs (Martindale Test).
Coach Hide Leather
  • Made from high quality, genuine chrome-free thick leather with heavy duty stitching to the edges.
  • Colour fastness to 6 (DIN 54004).
  • Colour rubbing strength 4 (DIN 54001).
  • Thickness between 2.1 and 2.2mm (DIN 53326).
  • Weight between 2100 and 2200g/m.
  • Flame resistant to 100mm/min.
  • Tensile strength 12N/mm (DIN 53328).
  • Dyed throughout.

Flite utilises a single bracket which is fixed to the extruded beam using mechanical fasteners.

  • Pressure die-cast aluminium alloy, LM06.
  • Alloy conforms to BS EN 1559-1, 4, and BS EN 1676.
  • Finished in alochrom/alodine 1200 (corrosion preventive pre-treatment).
  • Polyester powder coated to 100 microns, available in any RAL colour.
  • UV stable.
  • Colour fastness conforms to DIN 54004.

Armrests, legs and table fixing brackets are made from pressure die-cast aluminium to the following specification:

  • Pressure die-cast aluminium alloy, LM06.
  • Alloy conforms to BS EN 1559-1, 4, and BS EN 1676.
  • Finished in alochrom/alodine 1200 (corrosion preventive pre-treatment).
  • Polyester powder coated to 120 microns, available in any RAL colour.
  • UV stable.
  • Colour fastness conforms to DIN 54004.
  • Armrests are also available in polished aluminium and can be added or subtracted on the units. The fixings are common on all configurations.
  • Floor fixable legs and back to back connectors are available as an option the units and not be integral to the seat. The fixings are common on all configurations.

Tables follow the same module as the seat units allowing them to be installed at any given location including the end of the beam. The beam carries the necessary fixings for either a seat or a table. Half tables are available as an alternative where space is at a premium.

  • Tables are double sided allowing them to be reversed in the event of surface damage and incorporate through fixings to facilitate this.
  • Tables are made from Solid Core Laminate to the following specification:
  • Constructed from Solid Phenolic Laminate faced on both sides.
  • Resistant to chemicals boiling water, staining and cigarette burns.
  • Tested to ISO 4586.
  • Fire rated to BS 476-6 and 7: class 2.
  • Available in a wide range of colours and finishes.
