Seville

Short sit seating
Originally designed for the British Pavilion at the Seville Expo 1992. Seville is a bi-directional bench ideal for use in ancillary areas such as platforms, baggage reclaim and public spaces.

  • BI-DIRECTIONAL
  • 100% ALUMINIUM
  • SUITABLE FOR EXTERIOR USE
  • PRM OPTIONS
  • POWER INTEGRATION
  • 25 YEAR WARRANTY

Features

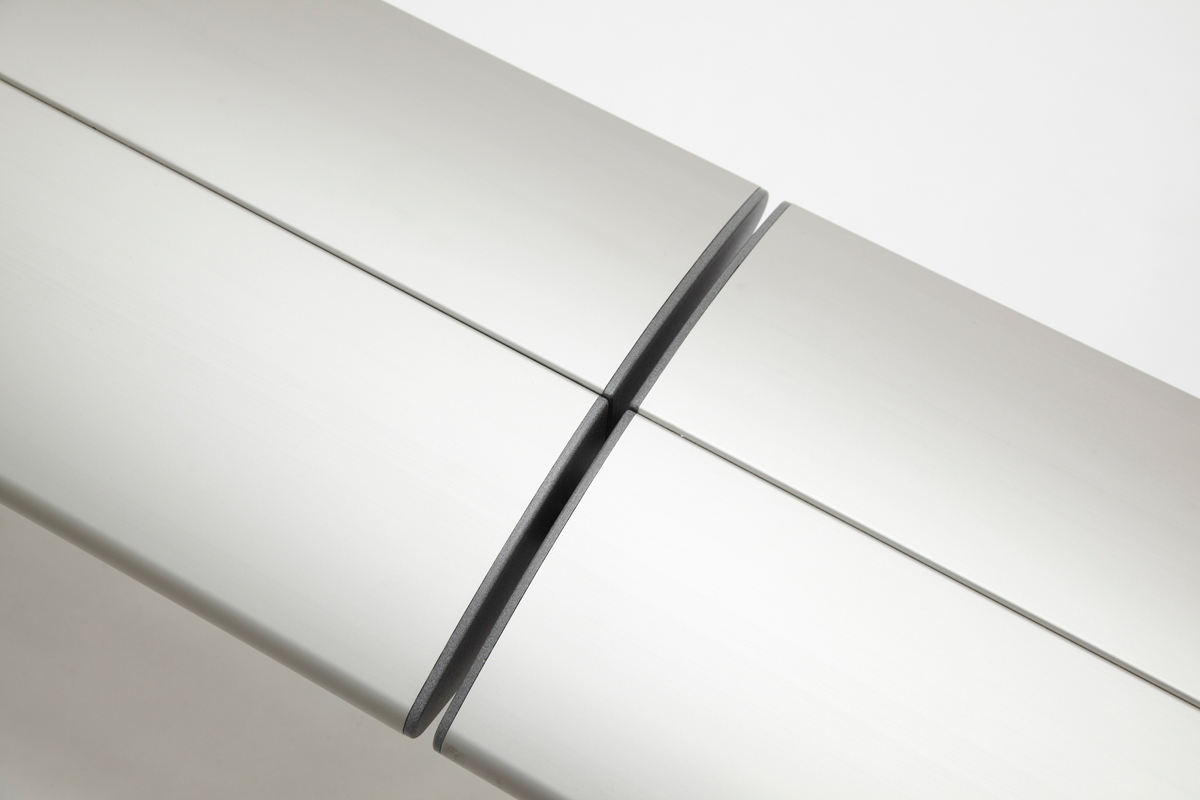

Constructed entirely from aluminium, extruded seat sections slide onto an interlocking beam and are secured by die cast aluminium end caps. Seville is available in a range of different mounting options.

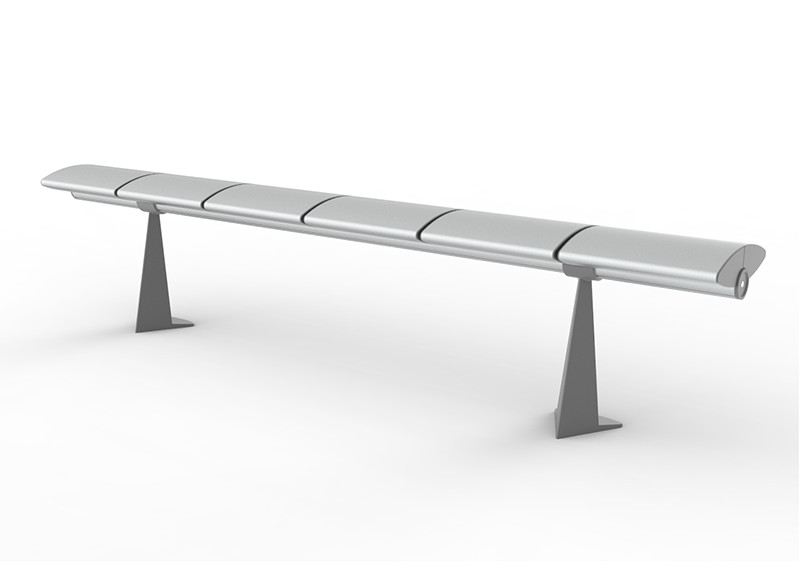

Individual Seats

Seat sections are spaced apart to create clearly marked individual spaces. Compatible with all mounting options.

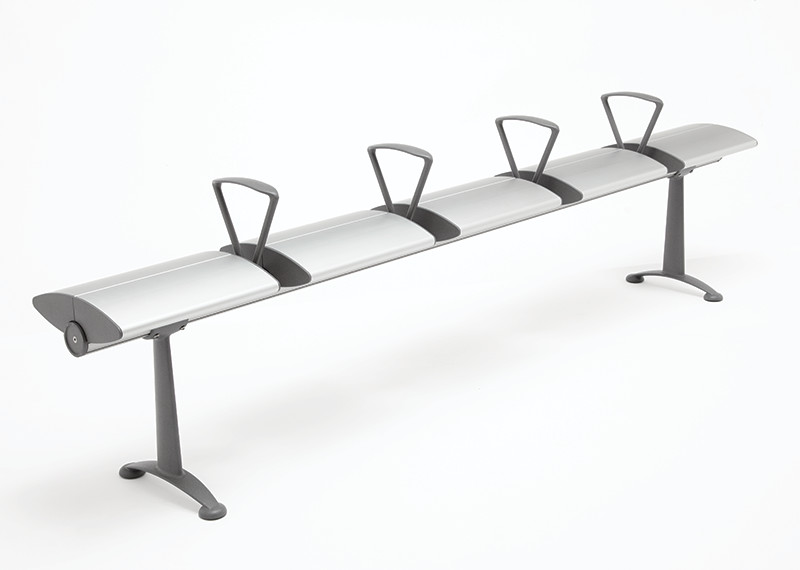

Armrests

Seat sections separated by armrests. Compatible with all mounting options.

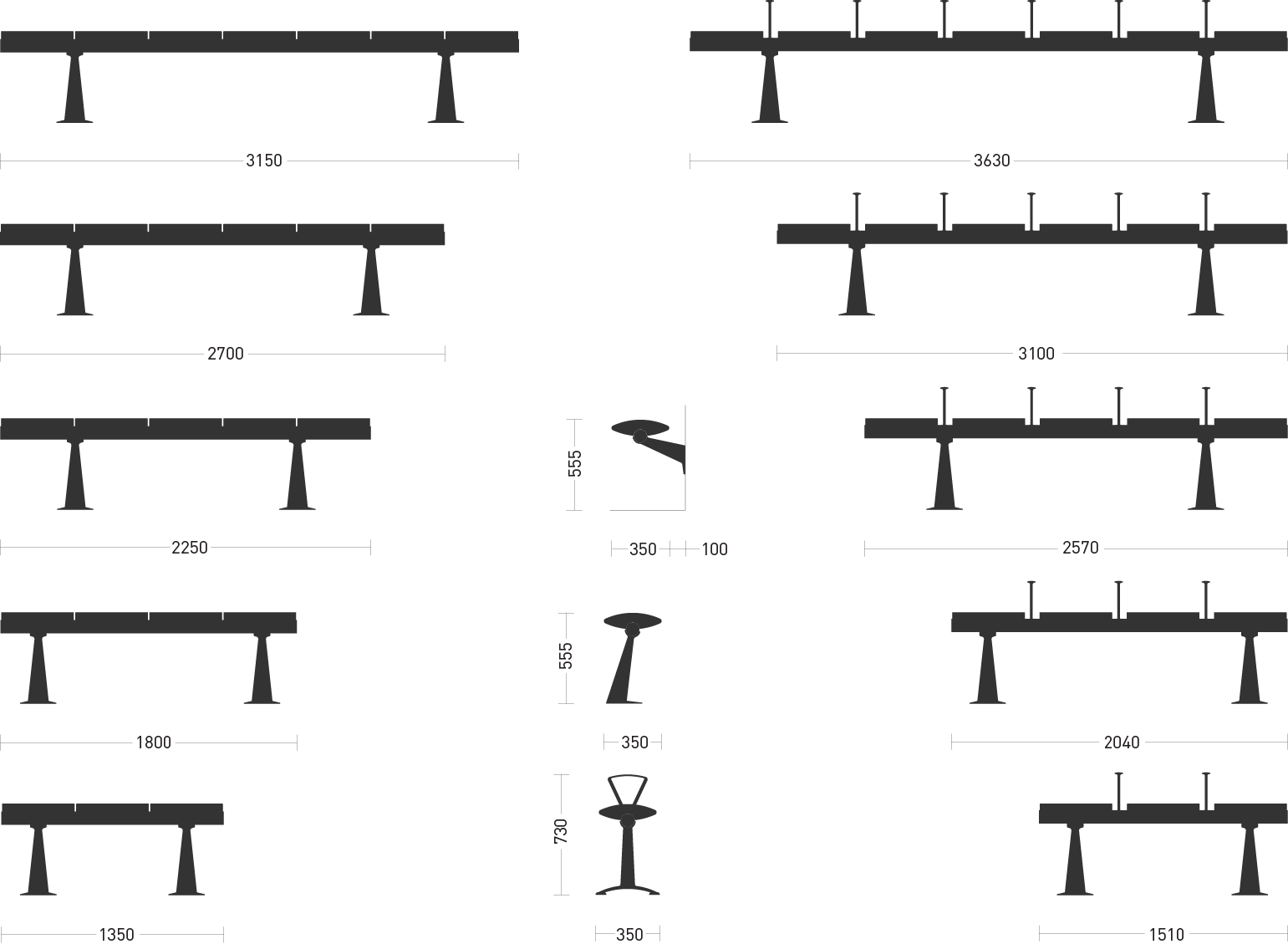

Seville is available in three standard leg styles, all are made from die cast alumnium and available powder coated in any RAL colour. Custom mounting options can be developed to integrate Seville into architectural structures such as shelters and railings.

Floor Fixed Leg

Freestanding Leg

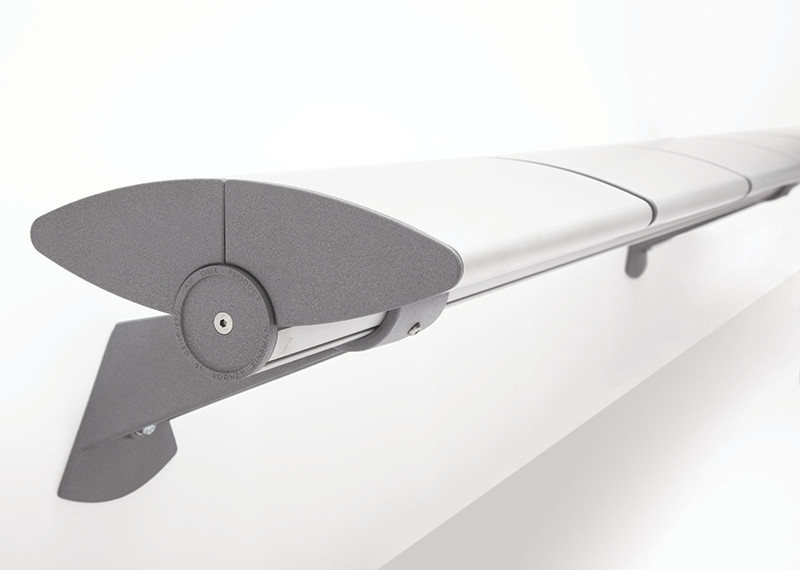

Wall Mount Bracket

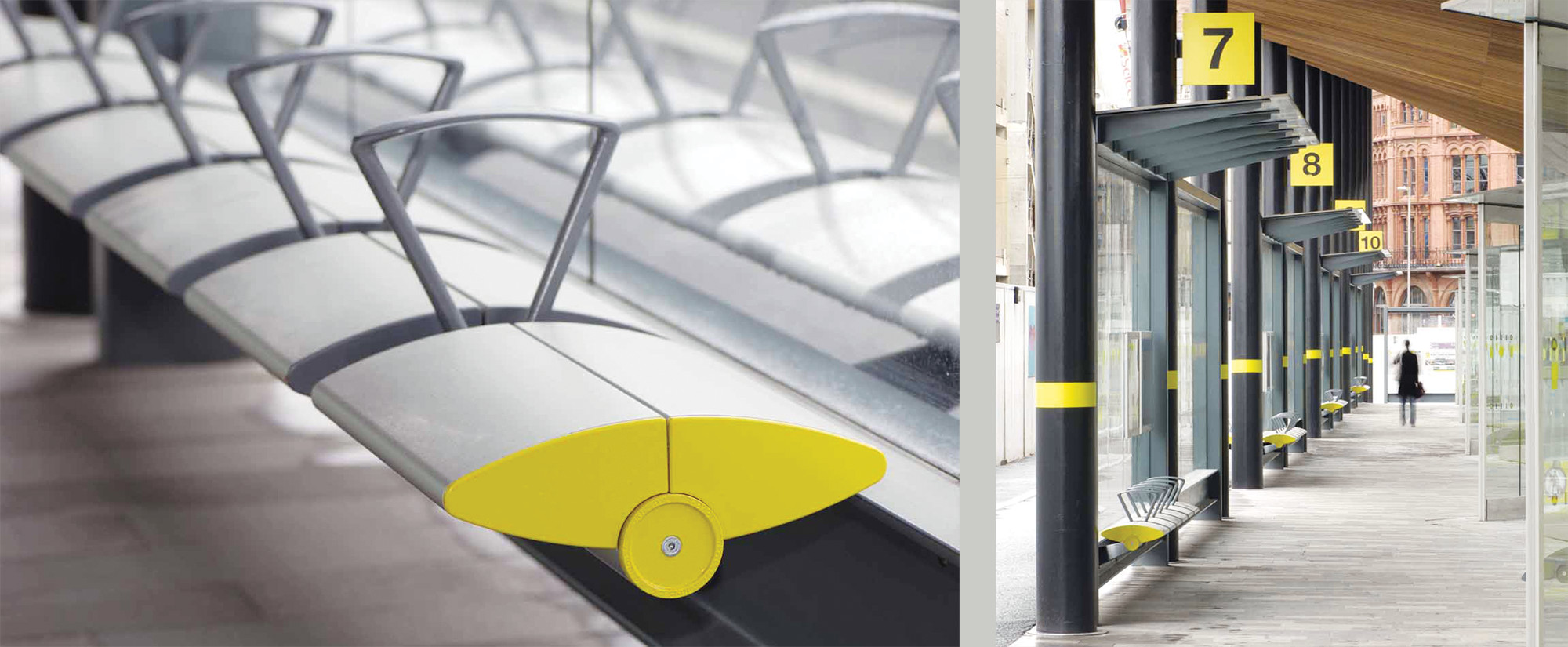

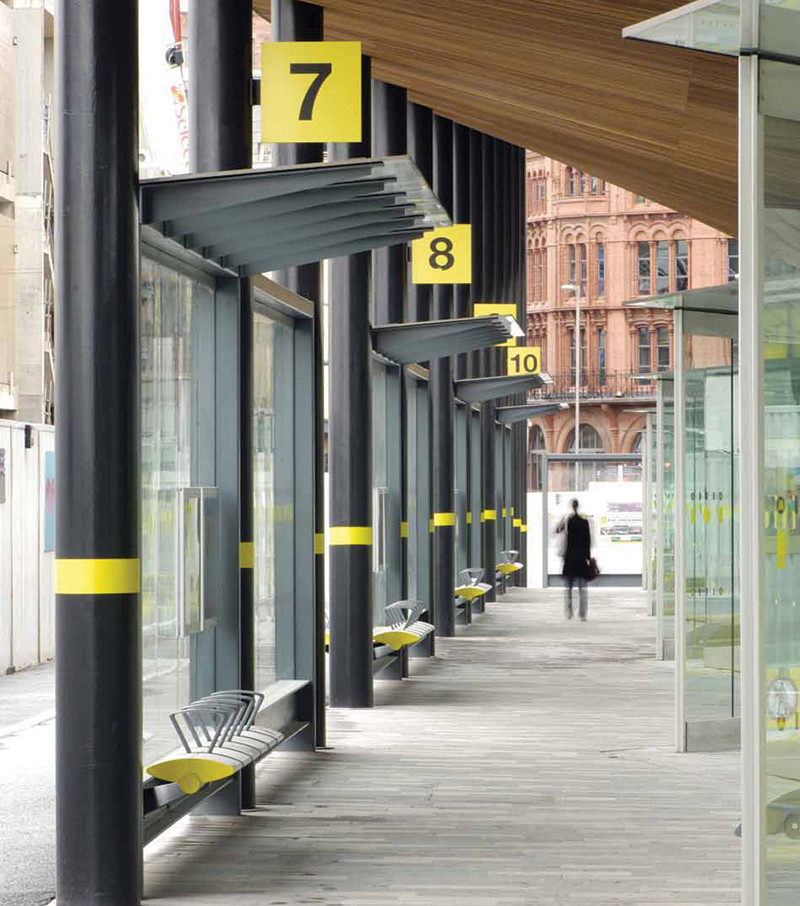

PRM Identification

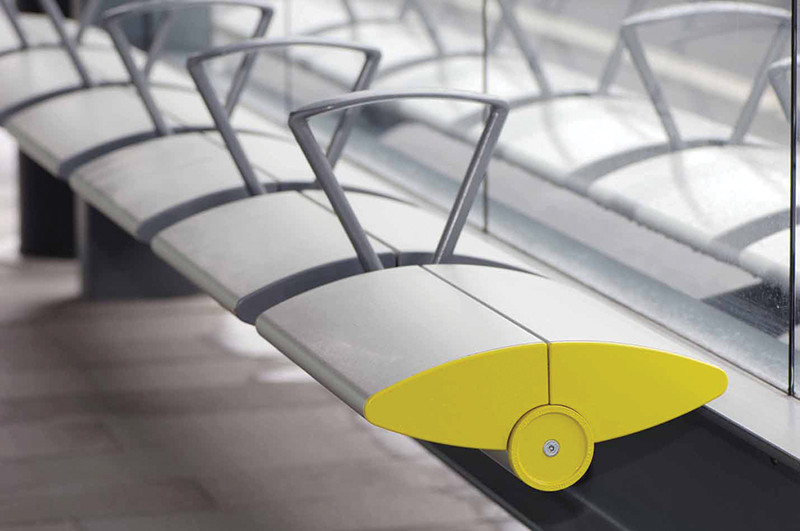

End caps can be powder coated in any RAL colour to highlight the seat location.

Floor Fixed Leg

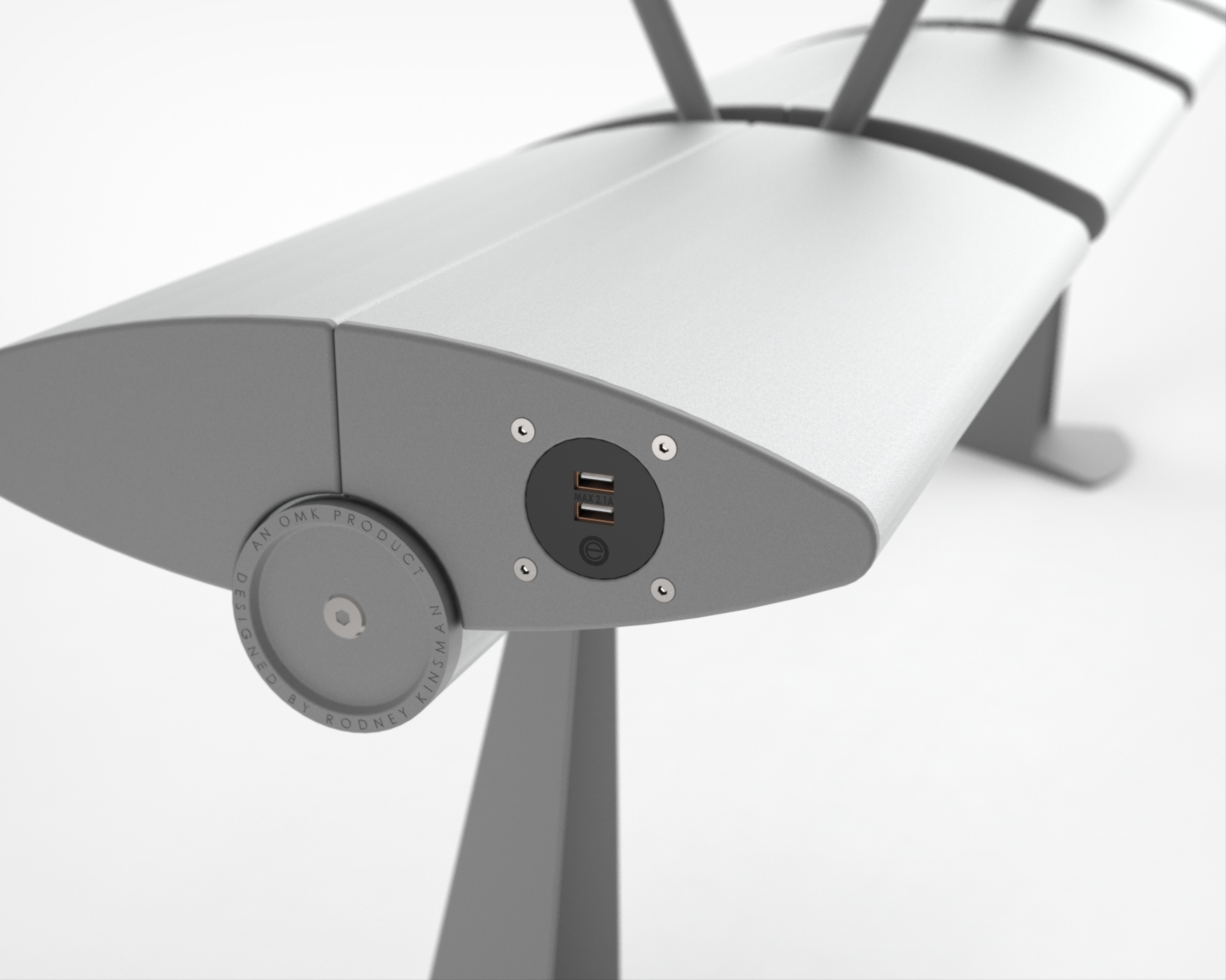

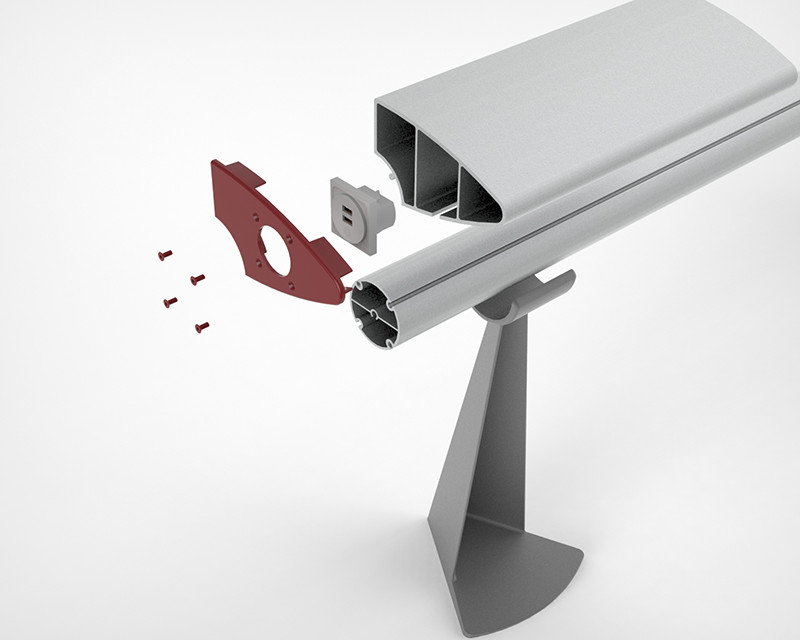

An intelligent USB charging module can be integrated into the end cap. Cabling is routed through the seat.

The module is removable making it easy to upgrade to the latest technology or replace in event of damage.

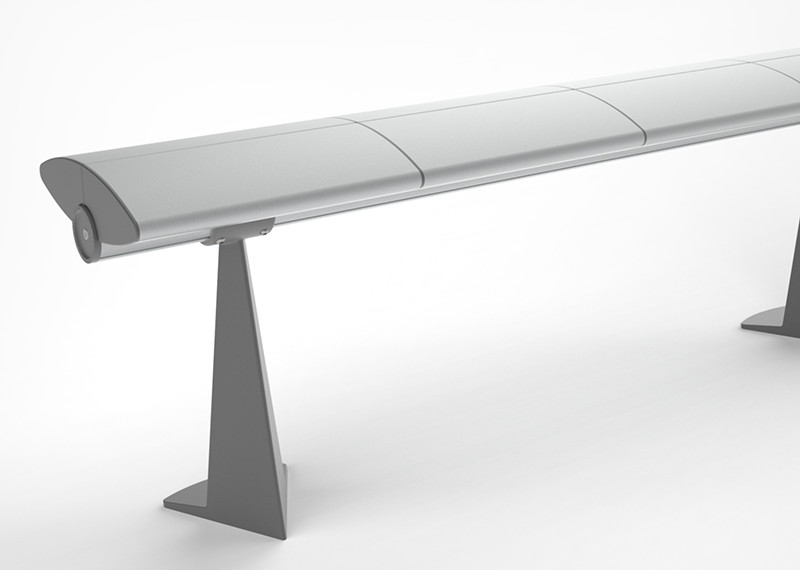

Seats can be positioned along the beam as a continuous bench of any length, with or without intermediary arms.

Configurator

Create your ideal Flite system by selecting your chassis, finish, and accessory options. Colour palettes for all finishes are available on request. Please see the Trax and Seville pages for other configurators, and contact us if you need assistance, or have a special request.

Chassis none ...
Leg Style none ...
Leg Style none ...
Total:

Technical Specifications

By using cutting edge materials and manufacturing techniques all of our products carry a 25 year warranty and are independently tested to withstand this use.

A modular bench seating system of interlocking high grade extruded aluminium beam and seat sections.
Each seat section is capped with a push on pressure die-casting.

All cast components can be coloured to any RAL colour.

  • Guaranteed against structural failure for a minimum of 25 years.
  • Has been independently tested by FIRA to withstand 25 years of heavy contract use in accordance with BS EN 15373.
  • Metal components are finished for interior and exterior use and are UV stable.

All seating products and tables supplied by OMK have been tested to and exceed the fire-rating requirements set out by British Standard BS5852 crib source 0, 1 and 5 and are approved for use in public waiting areas.

80mm diameter extruded aluminium tubular beam with a 5mm wall thickness and a 25 micron thick natural anodised finish.

Seat sections are made from extruded aluminium with a 4mm wall thickness finished with a 25 micron natural anodised finish. Each seat section can be closed off with 5mm thick pressure die- cast aluminium end caps. Seat sections slide onto the beam section with 6mm diameter x 20mm long nylon spacers between each seat. Seats are locked in place by a pressure die-cast aluminium beam end cap, which is secured by a high tensile M8 stainless steel tamper proof security screw.

There are 3 standard feet options:

Floor Fixed Leg

Made from high grade pressure die-cast aluminium which is secured to the underside of the beam with three M8 zinc plated high tensile screws per leg this leg is fixed to the floor using M12 socket cap rawl bolt expansion sleeve type, (supplied by others), the type and length is dependent on floor finish and sub-floor depth.

Free Standing Leg

Made from high grade gravity die-cast aluminium which is secured to the beam with 3 M8 zinc plated high tensile screws per leg.

Wall Mounted Leg

Made from high grade pressure die-cast aluminium which is secured to the underside of the beam with three M8 zinc plated high tensile screws per leg this leg is fixed to the wall using 2 M12 socket cap rawl bolt expansion sleeve type per leg (supplied by others), the type and length is dependent on the wall material.

  • Pressure die-cast aluminium alloy, LM06.
  • Alloy conforms to BS EN 1559-1, 4, and BS EN 1676.
  • Finished in alochrom/alodine 1200 (corrosion preventive pre-treatment).
  • Polyester powder coated to 120 microns, available in any RAL colour.
  • UV stable.
  • Colour fastness conforms to DIN 54004.
